PASS Information - ps:®3D-RTC

The tool cartridge for TRUMPF punching machines (Group H, I)

PASS Stanztechnik AG introduces its latest development: the ps:^®3D-RTC tool cartridge, specifically designed for punching machines using the TRUMPF tool system. With its modular design, this cartridge offers numerous advantages for users in sheet metal processing and enables flexible, maintenance-friendly handling.

PASS Information - ps:®MT5 and ps:®MT10

Efficient saving of setup and tool change times

There are several ways to save time and money. One of the fastest and most effective options is definitely to use a multitool for the TRUMPF tooling system, the ps:^®MT5 or the ps:^®MT10.

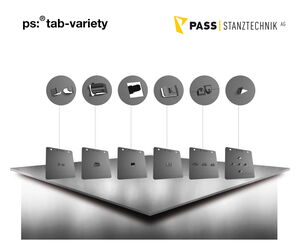

PASS Information - ps:®tab-variety

For producing connecting tabs

Producing tabs is omnipresent in the sheet metal industry. Tabs are basically used for connecting two components.

In order to join sheets together, e.g. secure overlapping connections can be used.

There are almost no limits to the variety of tabs.

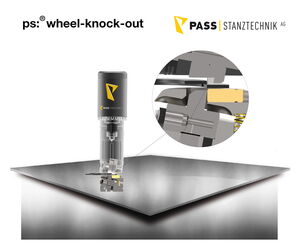

PASS Information - ps:®wheel-knock-out

Shape and size independent tool for flexible on-site knock-outs

Wheel tools and cutting tools – both tools are necessary for sheet metal processing!

However, reconciling the two types of tools sheds a new light on the approach, the use and the speed concerning on-site knock-out tools in different diameters.

ps:^®wheel-knock-out now offers the opportunity to easily and comfortably produce different diameters of knock-outs with ONE tool. No need to buy different tools and very important: Only ONE tool station is required on the machine!

This doesn´t only save costs but also tool changing times.

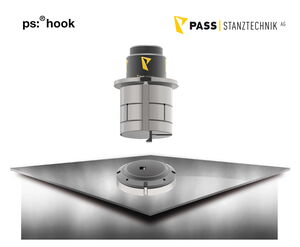

PASS Information - ps:®hook

For the production of (double) bends in the smallest space

Conventionally, simple, long bends are produced on a bending machine. But when smaller bends or even double bends are needed in the smallest space, the daily production sometimes reaches its limits or is going to be inefficient and difficult or even impossible.

Basically, simple short bends can be produced on a punching machine with embossing-bending tools (for example our ps:^®pivot for exact 90° bends). Our ps:^®hook is perfect for U-shaped bends that require special programming.

How does it work?

Read more … PASS Information - ps:®hook
