PASS punches with shear for reducing the punch force and noise
Technical application:
- PASS punches with shear are used for complete cuts in punching up to 8 mm sheet thickness.
- PASS punches with shear are produced exactly on your machine type.
Below you will find possible execution for PASS punches with shear.
Usual variations are:

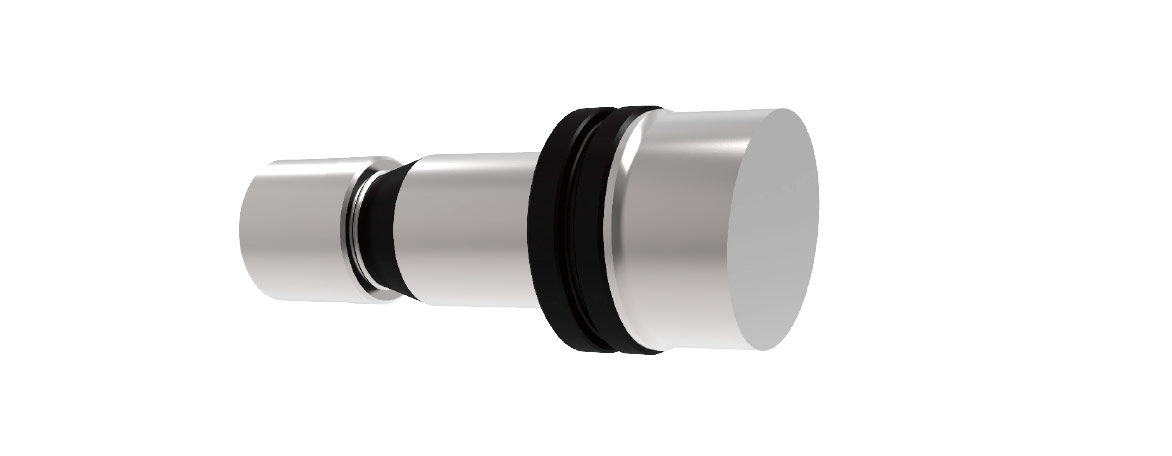

- for tooling system TRUMPF
![](files/img/faq/03-1.jpg)
![](files/img/faq/03-2.jpg)
- for tooling system THICK TURRET
![](files/img/faq/03-3.jpg)
- for tooling system SALVAGNINI
![](files/img/faq/03-4.jpg)
![](files/img/faq/03-5.jpg)
![](files/img/faq/03-6.jpg)

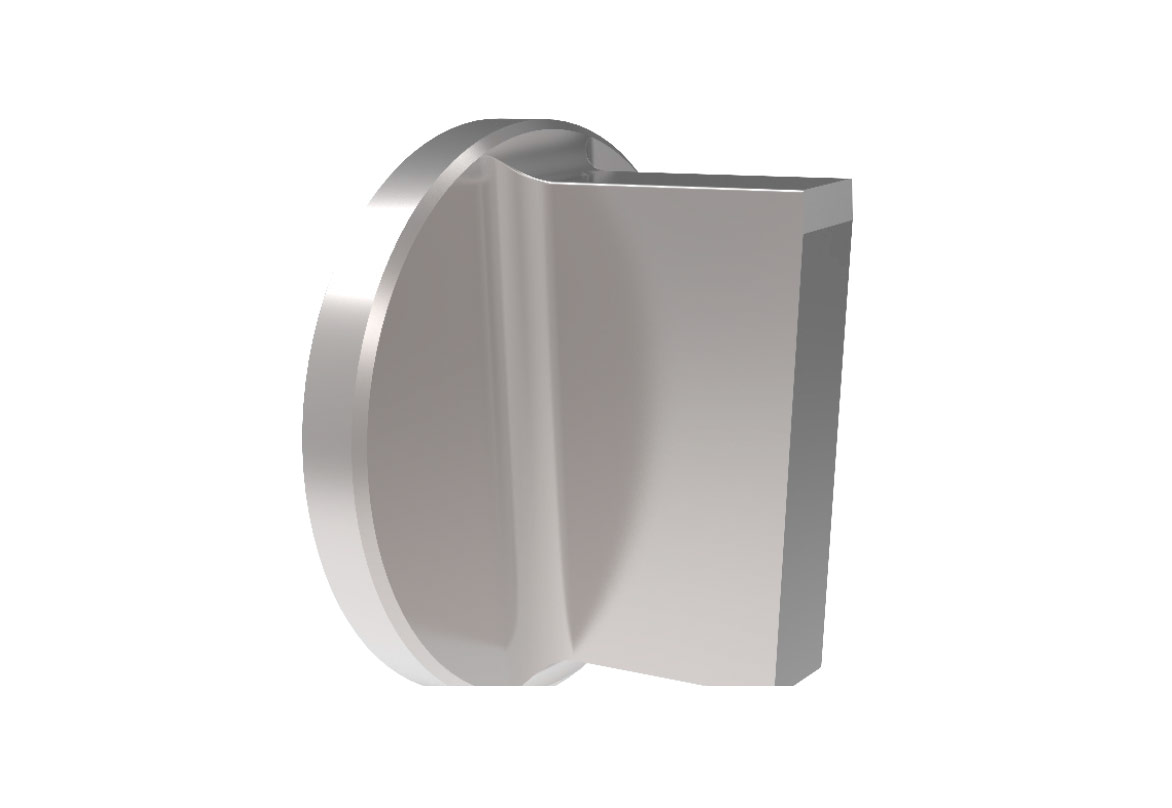

Possible shear variations for PASS punches
![](files/img/faq/04-1.jpg)
![](files/img/faq/04-2.jpg)
![](files/img/faq/04-3.jpg)
![](files/img/faq/04-4.jpg)
![](files/img/faq/04-5.jpg)
![](files/img/faq/04-6.jpg)
![](files/img/faq/04-7.jpg)
![](files/img/faq/04-8.jpg)
